Name: High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 20350mm
Availability: InStock

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

gebruik: Industriële vloeistoftransport

Specificatie: 1200,00 cm * 1000,00 cm * 1000,00 cm

Bruto gewicht van het pakket: 1000.000kg

Markeren:

PE Insulation Pipe Extrusion Line

Pre-Insulated Pipe Extrusion Line

Pre Insulation Pipe Extrusion Line

Basis informatie

Plaats van herkomst: Qingdao China

Merknaam: Huashida

Certificering: ISO9001:2008, QS

Modelnummer: 20350mm

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: Standaardpakket

Levertijd: 60 dagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram

Levering vermogen: 50 stuks per jaar

Galerij

High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation

Productomschrijving

High Speed PERT / PEX Flexible Insulation Pipe Making Machine For Industrial fluid transportation

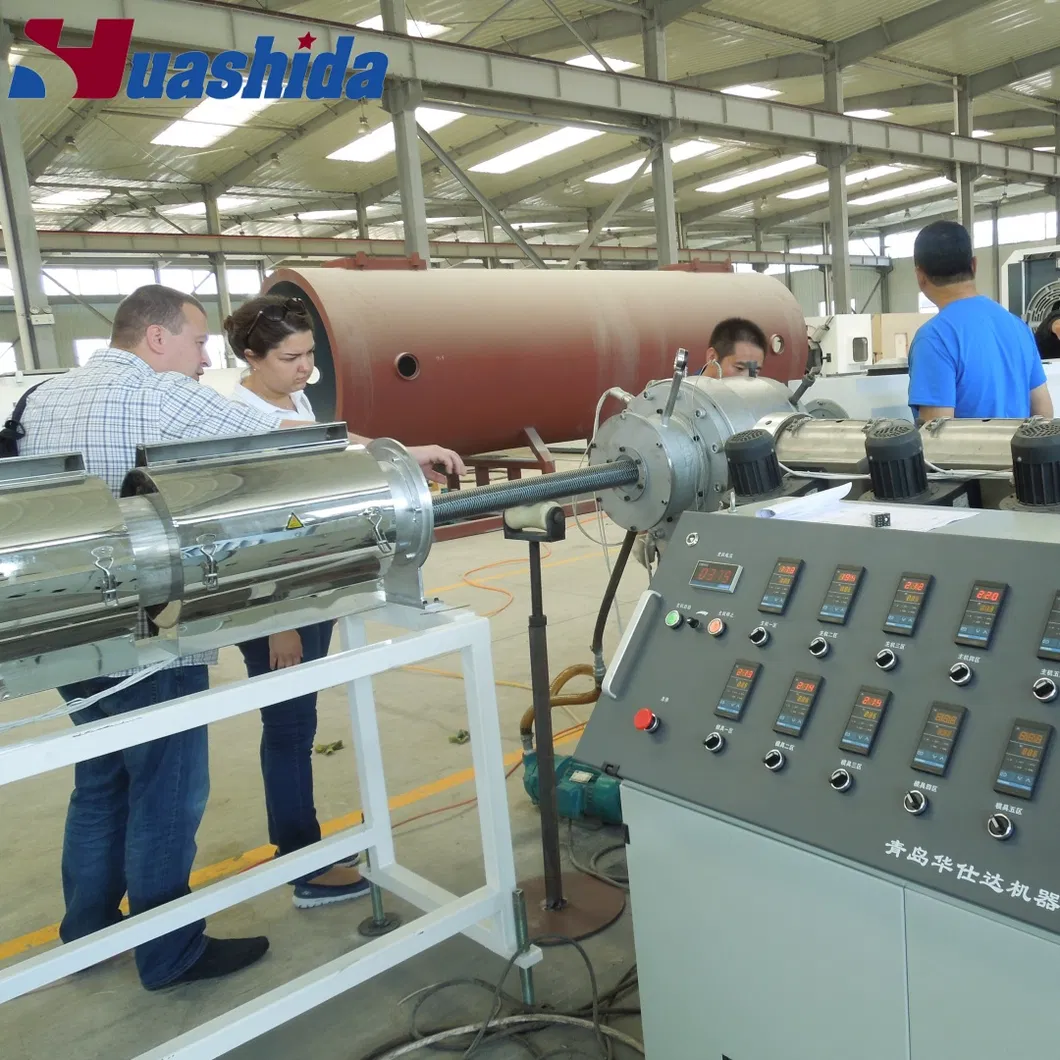

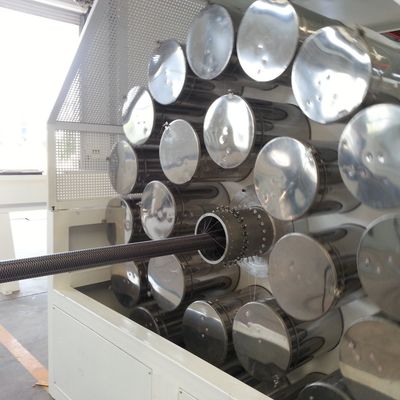

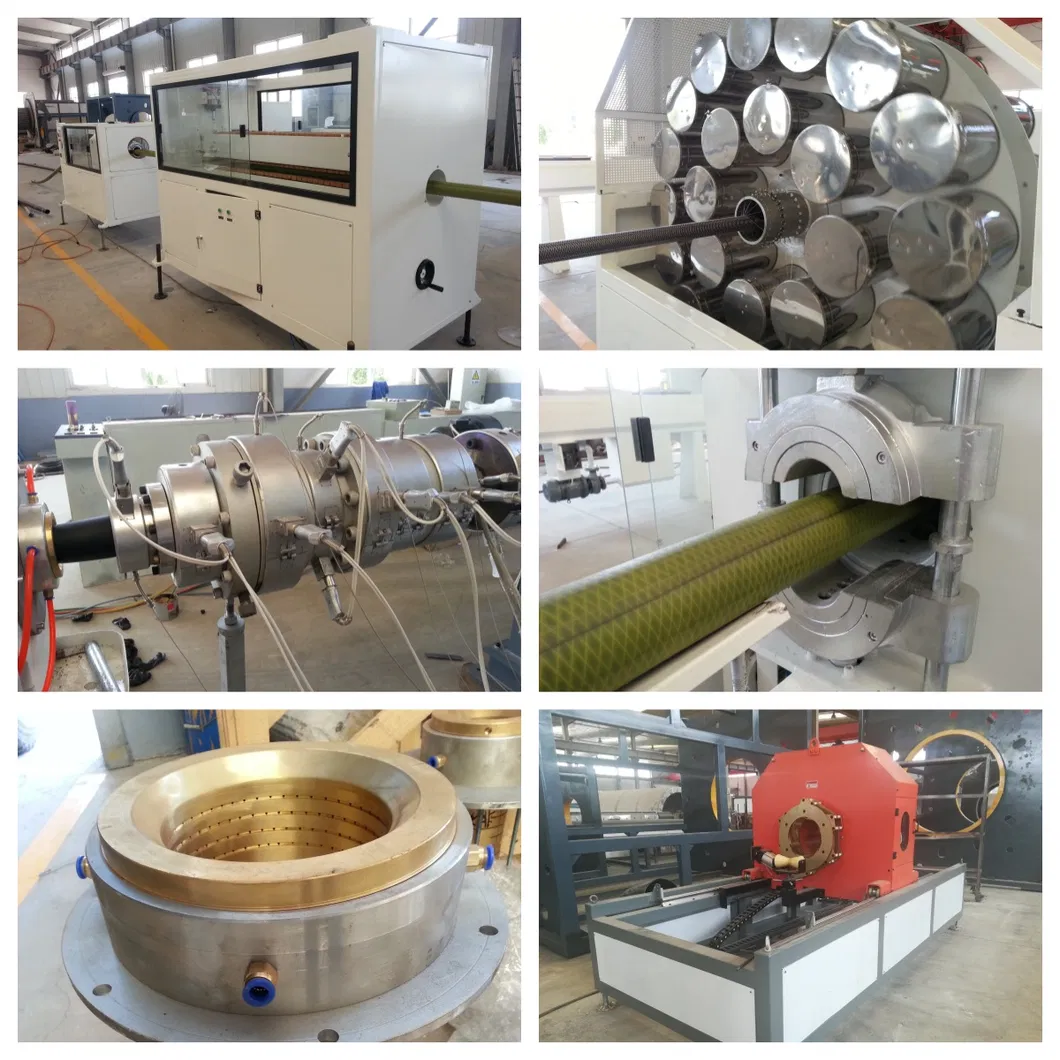

The flexible polyurethane pre-insulated pipe production line is an advanced equipment for producing polymer pressure inner pipes (PERT, PEX) and insulating the inner pipes with polyurethane foam.

The characteristic of this production line is that the pouring process of polyurethane foam is continuous.The inner pipe is continuously conveyed into the pouring area together with the polyurethane foam mixture, then coated and formed with a film, and then passed through a round die head to be coated with the outer protective layer extruded by the extruder.

High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation 0

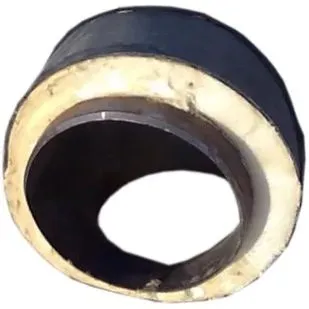

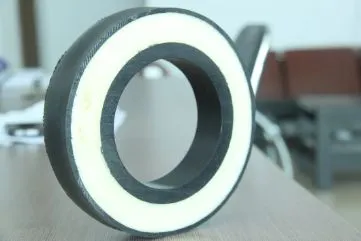

Compare between PE-RTII insulation pipe and Ordinary insulation pipe

Picture	Weight/m	Cost of project	Pipe Length
	Light	Low	unlimited
	Weight	High	Fixed-lenghth

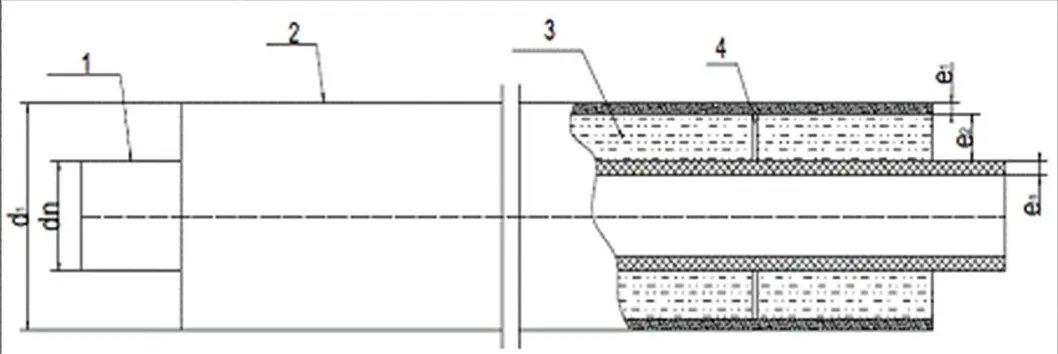

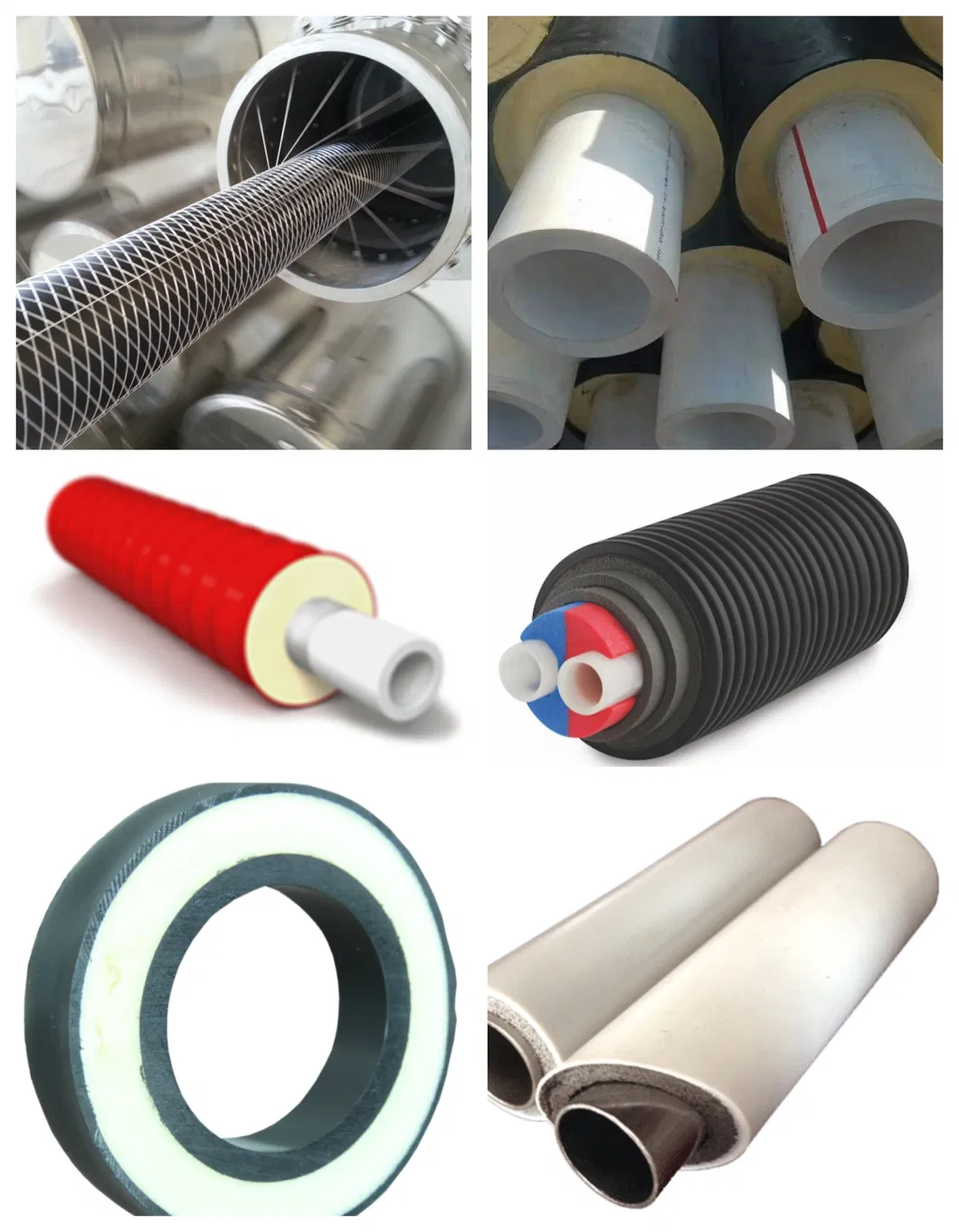

PE-RTII Heating Pipe Structure
High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation 3

PERT Work pipe; 2- Protective pipe; 3-Insulated pipe; 4-Stander;
d1- Protective pipe outer diameter; e1- Protective pipe wall thickness; e2- Insulation Layer thickness; dn-Work pipe Nominal diameter ;en- Nominal thickness of the work tube

PE-RTII insulation pipe

√ PERT II Pipes Can Tolerate Temperatures of 110°C
√ Pipeline smooth, no impurities, no pollution
√ Heating companies can realize unattended, automated operation
√ Low temperature heating
√ 60 °C supply water 45 °C backwater to meet the heating demand.
√ The construction is simple and convenient, and the excavation amount is 40%
√ Greatly reduce construction costs

It saves the raw materials for using PE-RT II pipe.
Example: Level 2 design pressure: 10 Bar; for cold and hot water transfer in buildings
Selection of different material pipes: the highest PE-RTIIS value; the thinnest wall thickness
Compared to PERT I, PERT II can reduce material use by 15%
Relative to PP-R, PERT II can reduce material use by 30%
Note: According to relevant Chinese national standards and draft

	s	Dia.(mm)	Wall Thickness(mm)	Wall Thickness Area(m2)	Density(kg/m3)	Length(m)	Weight (kg)	Weight Save PERT/X
PERT II	S3.2	16	2.2	9.5E-05	947	1000	90
PERT I	S2.5	16	2.7	1.1E-04	933	1000	105	-17%
PP-R	S2	16	3.3	1.3E-04	900	1000	118	-31%

PERT II	S3.2	20	2.8	1.5E-04	947	1000	143
PERT eI	S2.5	20	3.4	1.8E-04	933	1000	165	-15%
PP-R	S2	20	4.1	2.0E-04	900	1000	184	-29%

PERT II	S3.2	25	3.5	2.4E-04	947	1000	224
PERT I	S2.5	25	4.2	2.7E-04	933	1000	256	-14%
PP-R	S2	25	5.1	3.2E-04	900	1000	287	-28%

PERT II	S3.2	32	4.4	3.8E-04	947	1000	361
PERT I	S2.5	32	5.4	4.5E-04	933	1000	421	-17%
PP-R	S2	32	6.5	5.2E-04	900	1000	469	-30%

High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation 4

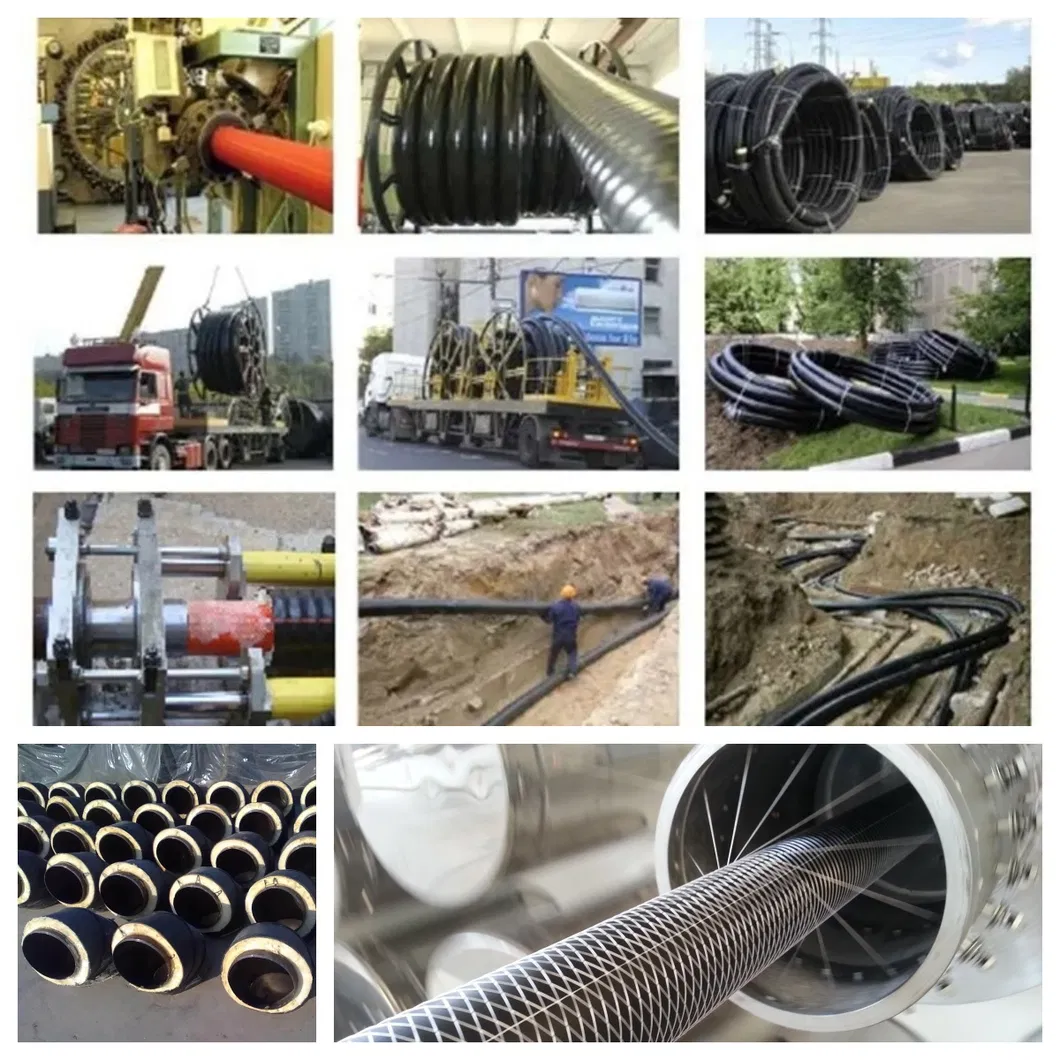

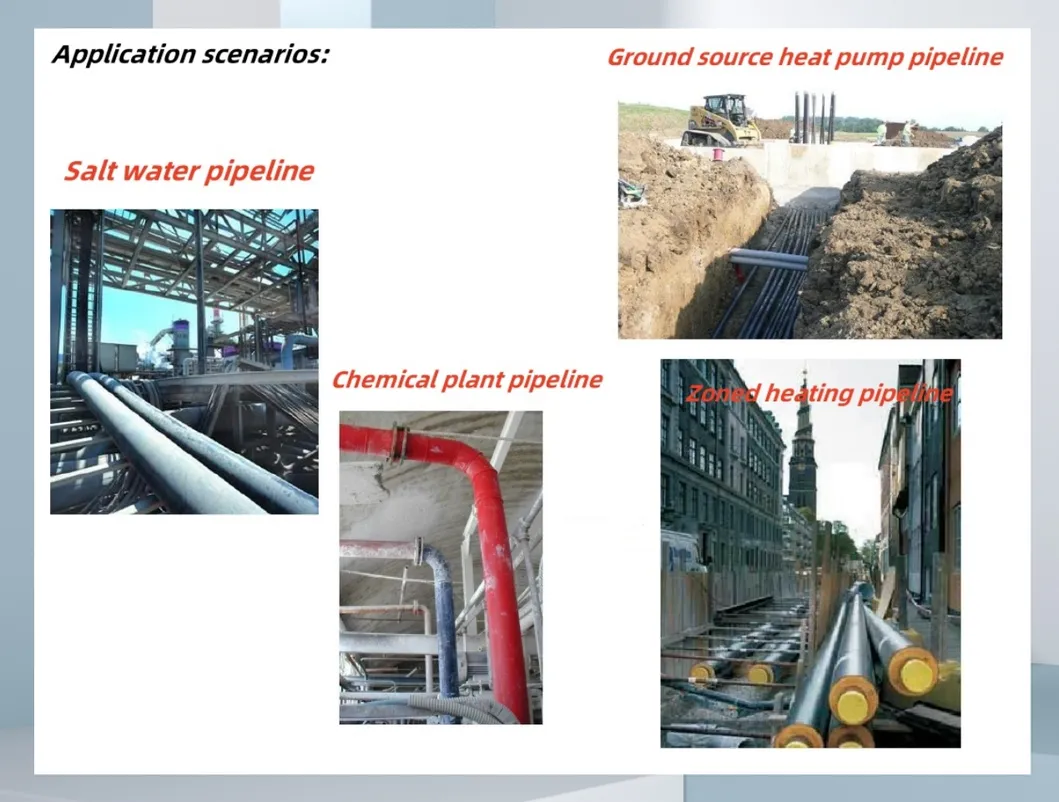

Huashida's continuous PERT flexible insulated pipe pipes are ideal for a wide range of applications, including district heating, cooling systems, oil and gas pipelines, and industrial piping. Their superior insulation, anti-corrosion properties, and long service life make them the preferred choice for modern, sustainable piping systems.

High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation 9

High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation 10

High Speed Pert / Pex Flexible Insulation Pipe Making Machine for Industrial Fluid Transportation 11
