HDPE Pipe Manufacturing Equipment for Water/Gas Supply Systems

The fully automatic HDPE pipe production line covers the production demands of PE80/PE100 pipes with diameters ranging from Φ20 to 2000mm, and is widely used in water supply, irrigation and gas transmission fields. The core advantages include:

Precision manufacturing
High-efficiency extruders, precision molds and water cooling systems ensure the size and surface quality of the pipes

Intelligent control
The PLC system realizes full-line automation and integrates online detection to ensure product stability

High efficiency and energy conservation
The high-speed traction and intelligent cutting unit enhance production capacity, and the low-energy consumption design complies with environmental protection standards
This solution focuses on the stable production of high-quality pipes, is easy to operate and meets the strict requirements of the industry.

Technical specification

Technological processes
 [Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting]  → [Marking]

Main equipment list
-1set Vacuum loader
-1set Hopper dryer
-1set High-effeciency single screw extruder
-1set 25/25 single screw extruder for mark line
-1set Vacuum calibration table

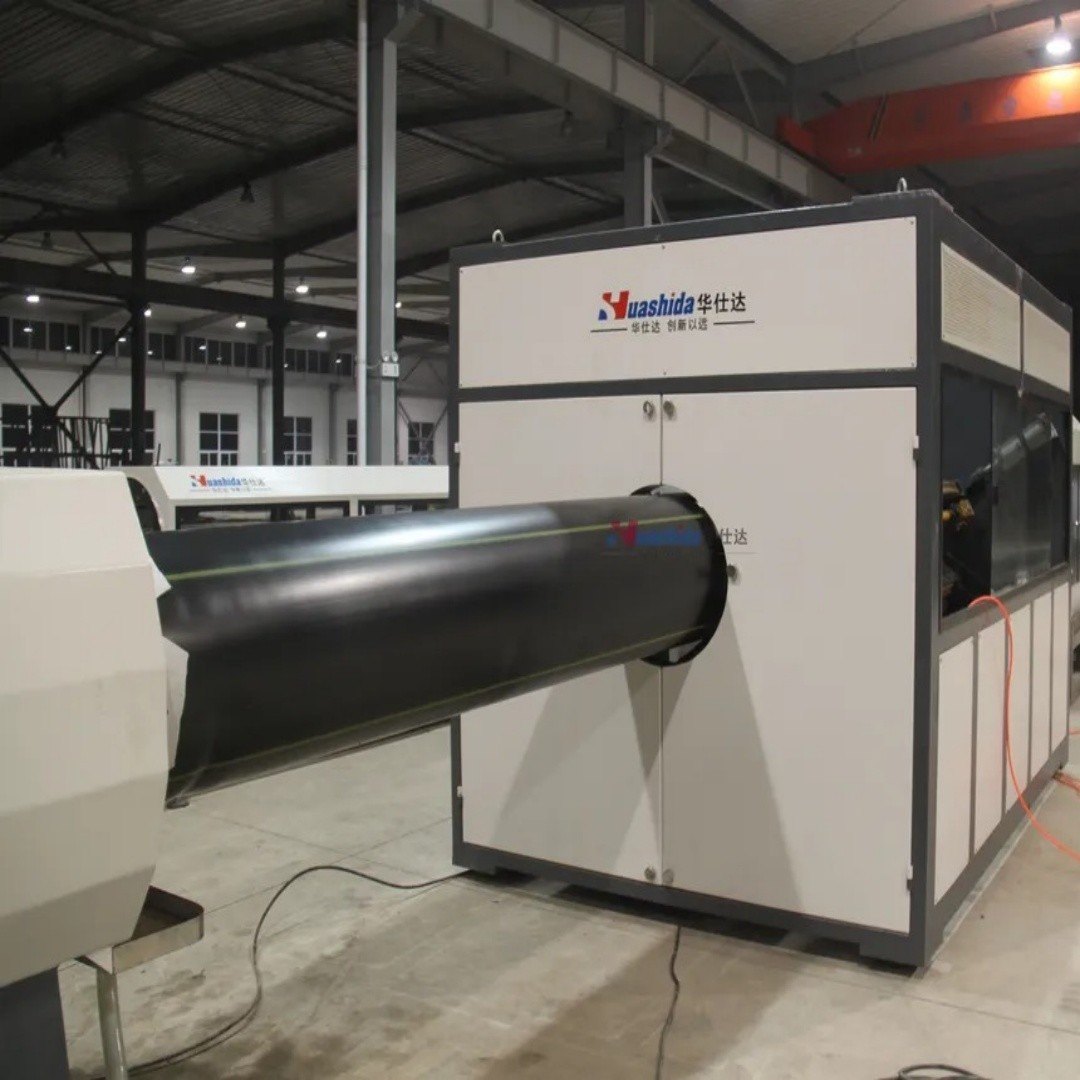

-2/4  set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Stacker

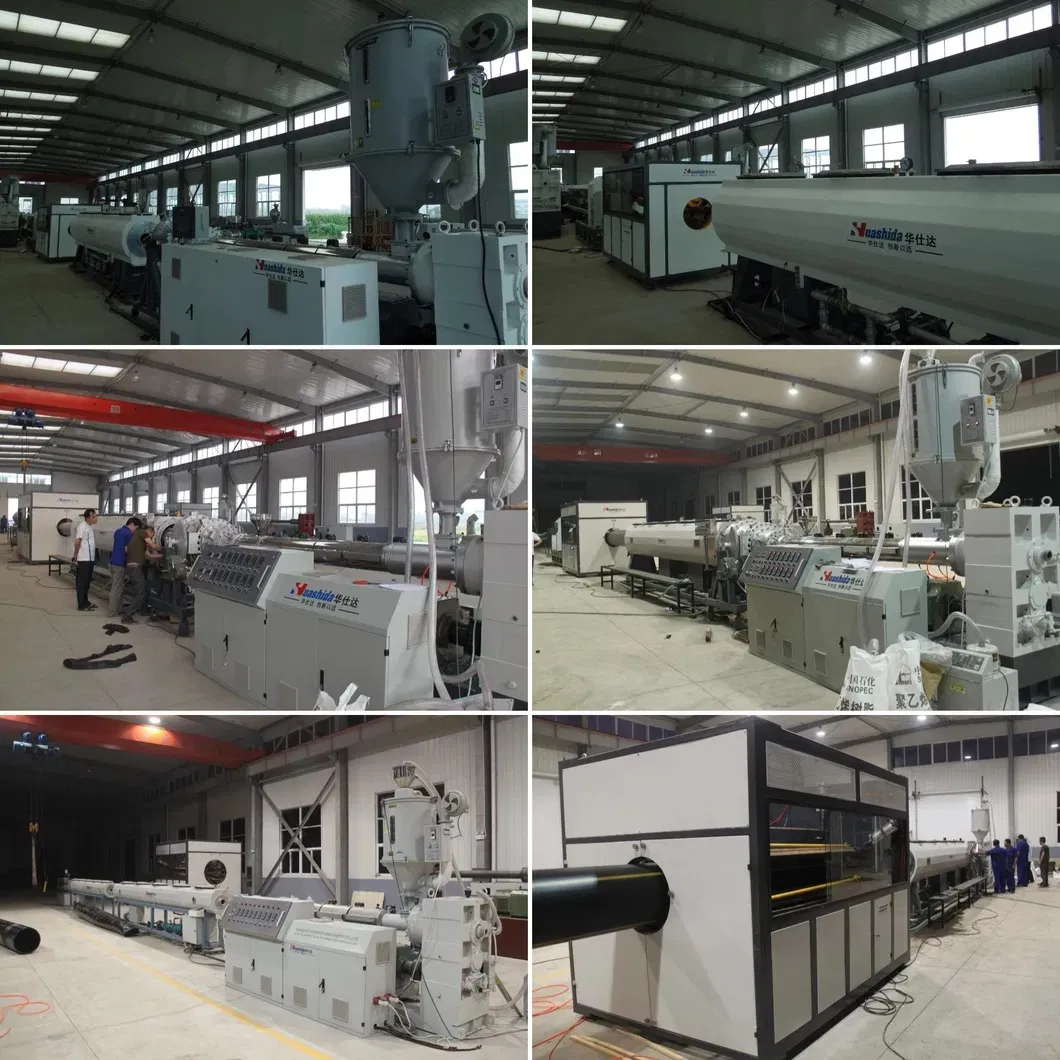

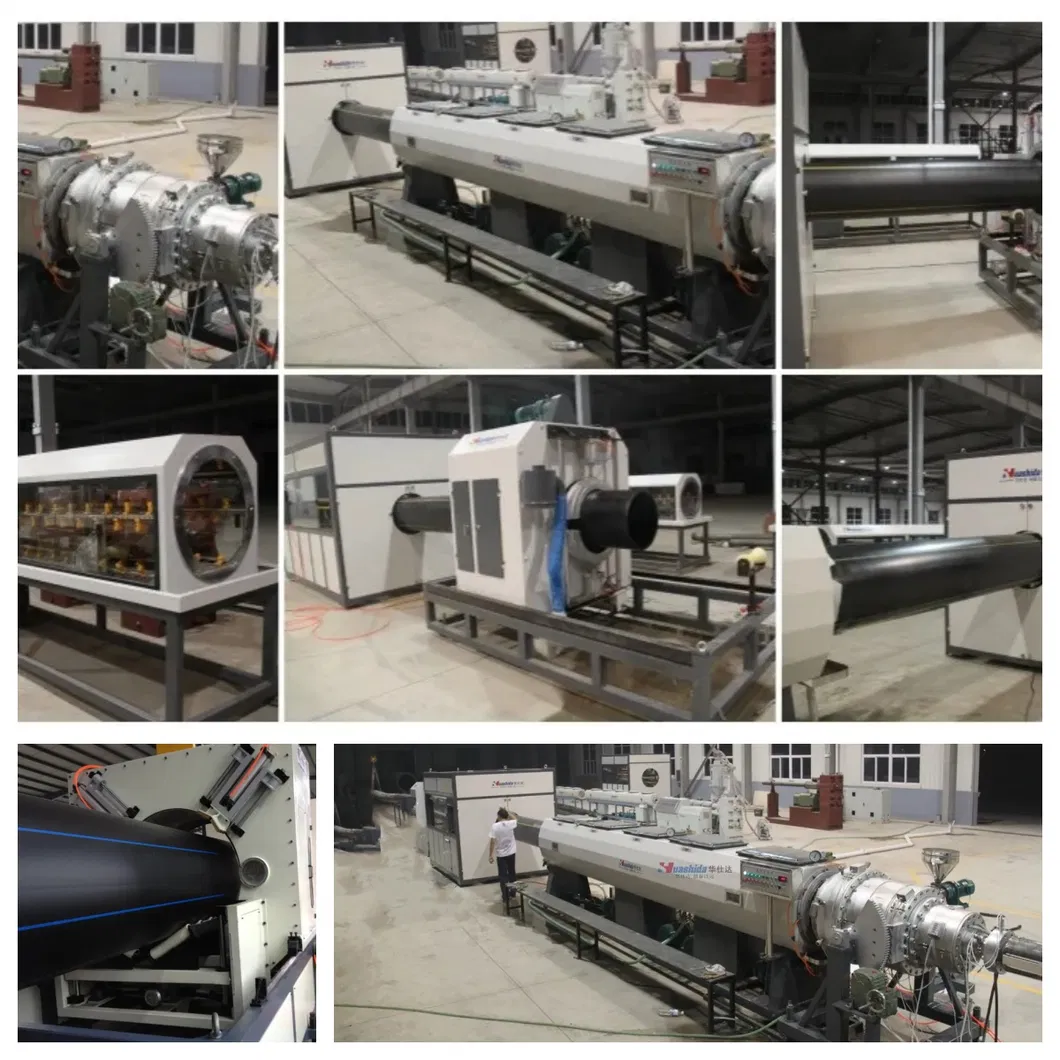

Detai photos

Pipe characteristics:
Excellent rigidity and flexibility coexist

Life expectancy guarantee
Environmental stress resistance/creep resistance/heat resistance linkage

Application breadth:
Gas/water supply/foundation/landfill/geothermal engineering

Technical core:

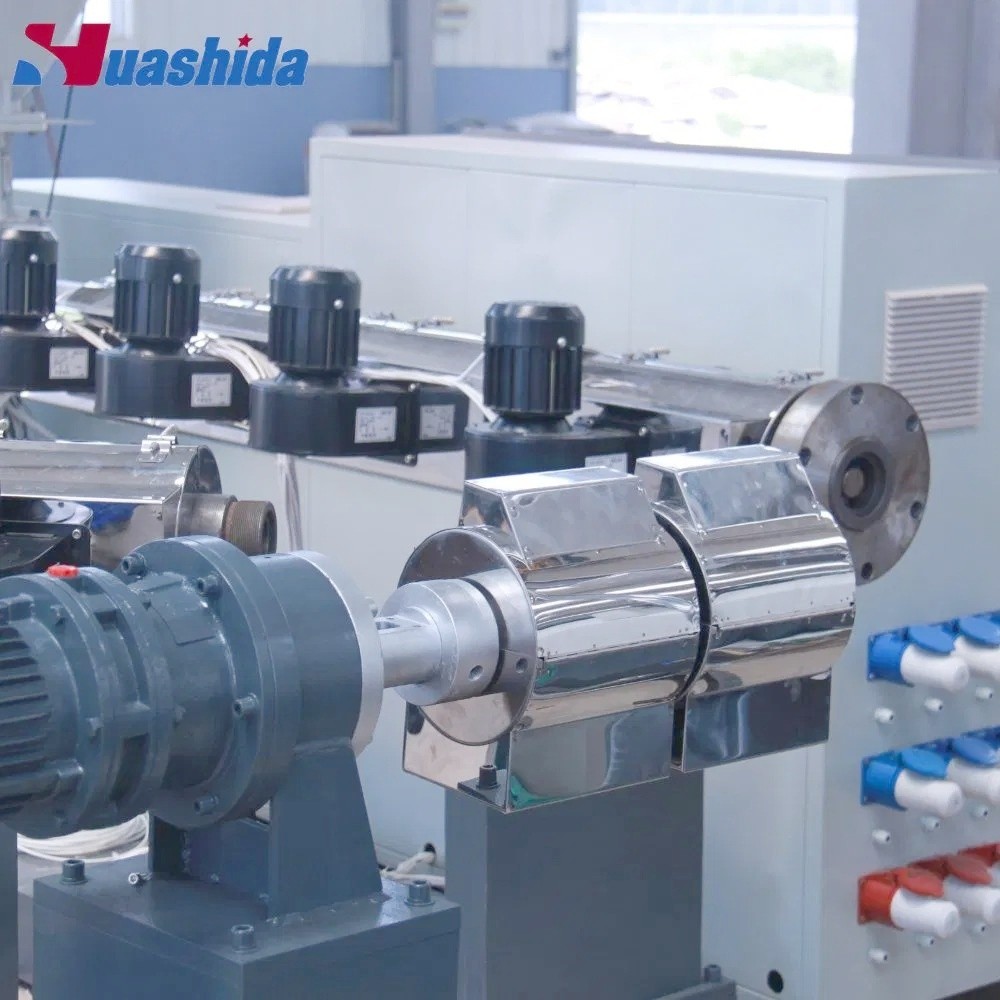

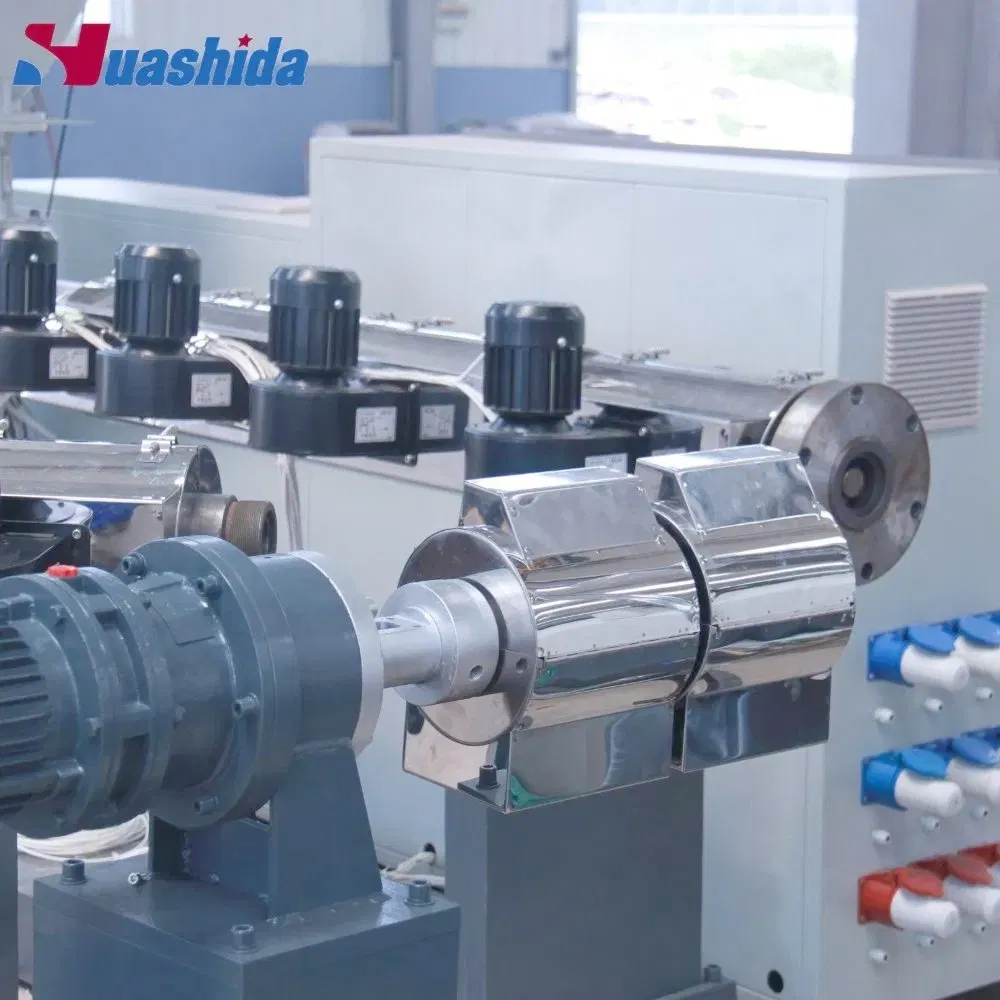

Special HDPE extruder (mixing screw + slotted barrel)

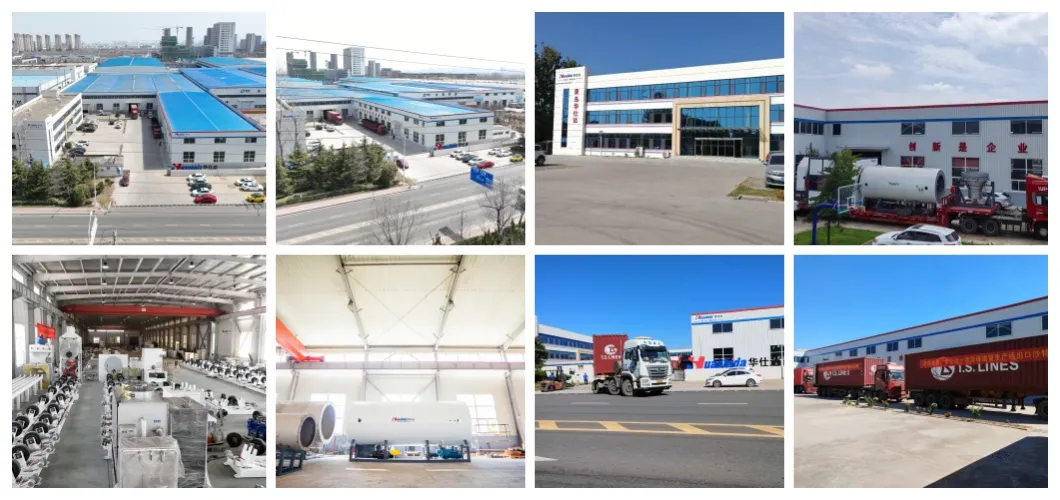

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
