HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line

1 set
MOQ
US$100,000.00-3,000,000.00
Prijs
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Basis informatie
Plaats van herkomst: Qingdao
Merknaam: Huashida
Certificering: CE; ISO:9001
Modelnummer: 90-2000 mm
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Woddendoos
Levertijd: 60-90 dagen
Betalingscondities: L/C,T/T
Levering vermogen: 100 sets/jaar
Productomschrijving

                                        HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line


Basic Info.

Model NO.
420-2000mm
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
After-sales Service
1 Year
Pipe Material
PE, HDPE
Calibration Method
Vacuum Calibration
Cooling Method
Water
Diameter Range
90-2000mm
Transport Package
Standard Package
Specification
ISO9001: 2008
Trademark
HSD
Origin
Qingdao China
HS Code
8477209000
Production Capacity
50 Sets/Year

Packaging & Delivery

Package Size
1200.00cm * 220.00cm * 260.00cm
Package Gross Weight
4000.000kg

Product Description

     HDPE Jacket Pipe Pre-insulated 420-2000 mm Line

Product Description

 Polyurethane Foam Pre-insulated Pipe HDPE Casing Jacket Pipe Machine is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of  PU foam thermal Pre-insulated Pipe according to international standards.
The HDPE shell pipe is produced by vacuum calibrating method with smooth internal and external walls, long service life, good anti-corrosion insulation and mechanical performance.


Product Parameters
Production range: 90-2000mm (by different models)

Production line composition:
-1 set Vacuum loader
-1 set Hopper dryer
-1 set High-efficiency single screw extruder

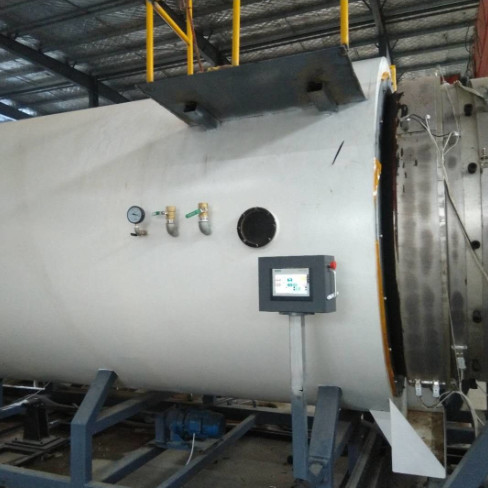

-1 set Vacuum calibration table
-1 set Water spraying tank

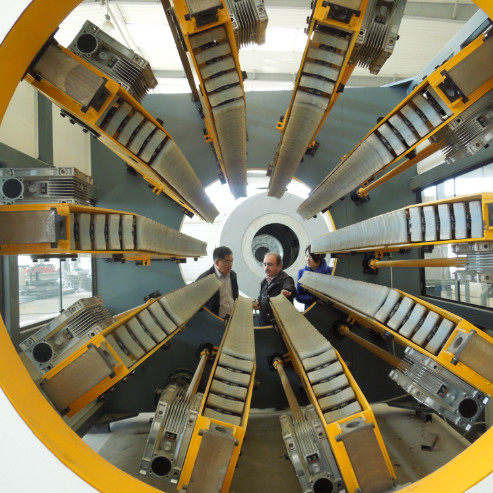

-1set  Hauling machine
-1 set Cutting machine
-1 set Discharging Frame
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ365-760m Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed power 160kw 240kw 480kw 580kw 580kw
Length 26m 32m 36m 40m 45m
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line 0
Our Advantages

-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-long service life.
-high-efficiency extruder gives larger output and stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line 1

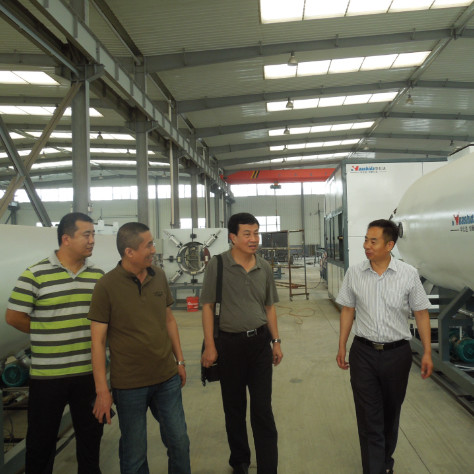

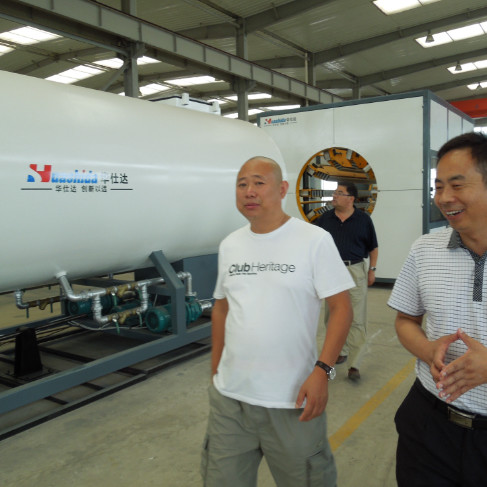

Company Profile



Exhibition



Certifications
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line 2
HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line 3

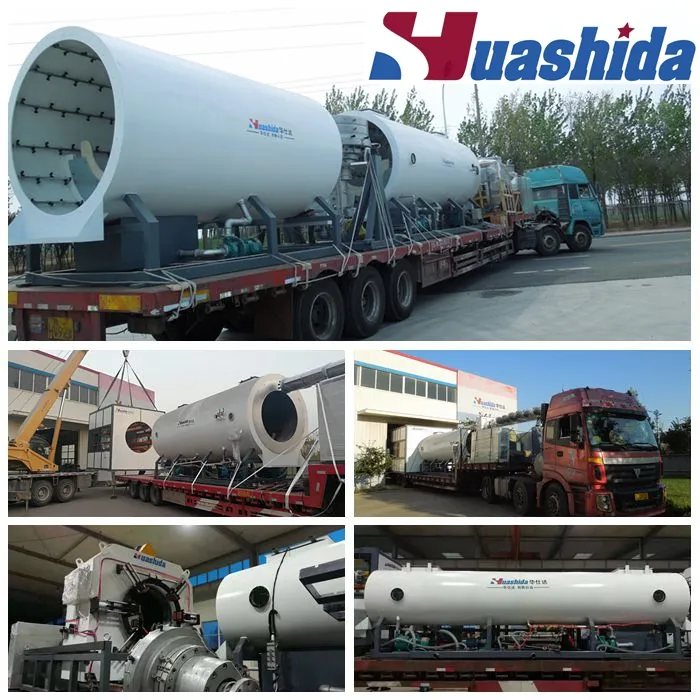

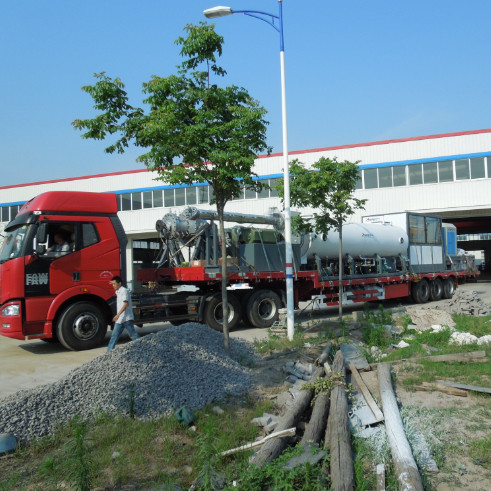

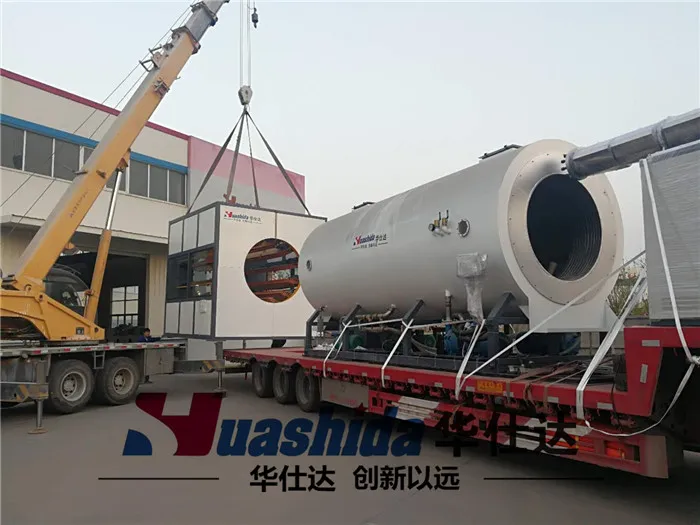

Packaging & Shipping


HDPE Jacket Pipe Pre-Insulated 90-2000 mm Line 4

Our machines make products what are widely used as
jacket pipe of PU foam insulation pipe in municipal heating pipe system;
municipal water supplying and drainage pipeline;
oil and gas pipeline;
pipe joints of plastic drainage water pipes,
PU foam insulation pipelines,
2PE/3PE oil and gas pipelines;
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
